Hospital Elevators

Hospital Elevators

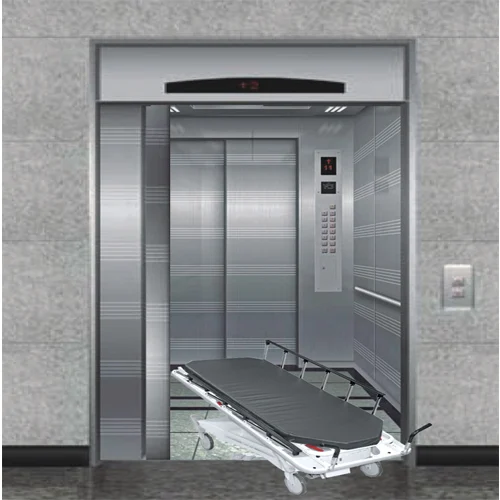

At Betcon Elevators, our bed and stretcher lifts are engineered to meet the specific needs of hospitals, clinics and other healthcare environments. Designed for safe and efficient patient transportation, these lifts come equipped with a ‘Car Preference’ switch that allows an attendant to take full control of the lift when necessary. A lift normally installed in a hospital/dispensary/clinic and designed to accommodate one number bed/stretcher along its depth, with sufficient space around to carry a minimum of three attendants in addition to the lift operator. The Car Preference mode overrides normal operations, allowing the car to respond exclusively to commands from the attendant, enhancing safety and operational efficiency. This is especially vital in healthcare settings where timing and access are critical. Betcon Elevators offers customized, reliable, and compliant lift solutions tailored for demanding hospital operations. With a strong focus on performance, safety, and ease of use, our hospital lift systems are built to support the continuous and sensitive nature of medical care environments. Hospital elevators are used for simple transportation of a patient on wheelchair to wheeling away a critical patient on stretcher without disturbing his life support system with doctors and nurses, smoothly, silently and swiftly, without jerks and shocks. Elevators for medical purpose are vertical transport equipment used in hospital and other relevant places to move patients and surgical instruments. Betcon offers hospital elevator in Auto Door and Manual Door operation.

Hospital Elevators - Dimensions:

LOAD

CAR INSIDE

LIFT WELL

ENTRANCES

PERSONS

KG

A

B

C

D

E

15

1020

1000

2400

1800

3000

800

20

1360

1300

2400

2200

3000

1200

26

1768

1600

2400

2400

3000

1200

Speed in m/s

Upto 0.70

> 0.70 ≤ 1.00

> 1.00 ≤ 1.50

> 1.50 ≤ 1.75

> 1.75 ≤ 2.00

> 2.00 ≤ 2.50

Pit depth

1350

1500

1600

2150

2200

2500

Overhead

4200

4250

4800

4800

5200

5400

Note:
1- The total overhead dimension has been calculated on the basis of car height of 2.3 m,
2- In case of manually operated doors, clear entrance will be reduced by the amount of projection of handle on the landlng door.
3- All dimensions given above for lifts having centre opening power operated doors with counterweight at rear, are recommended. dimensions primarily for architects and building planners.
4- Dimensions of pit depth and overhead may differ in practice as per design depending upon load, speed and drive.
